A WIRE RANGE OF PARTS FOR YOUR SCREEN BOX
Vibrating screens need to vibrate in a linear motion, the screens need to be correctly tensioned and washing requires proper nozzles. We offer a wide range of accessories for vibrating screens to ensure proper and safe operation.
Screen panels require proper tension and bedding to perform at their best with minimum breakdowns. Cappings act as a bumper between the deck and screen mesh. It is very important to fix the screen mesh tight to the deck as a lose connection will destroy the screen in a short period of time.
TENSION RAIL
Thickness – 6 mm / 0.25″
Length 2 m – 2.5 m – 3 m / 6′ – 8′ – 10′ (Other dimensions on request).
Angle – 45-90°
Width – 7-9 cm / 2.75″-3.55″

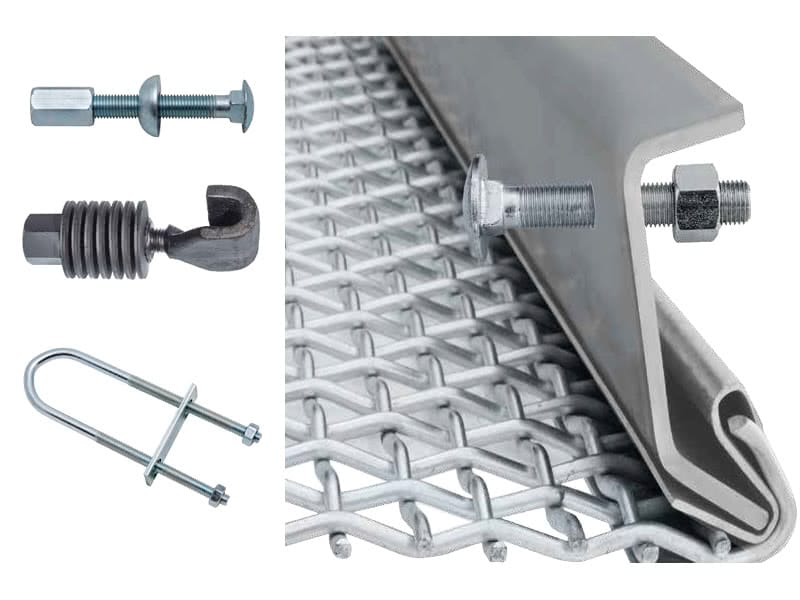

MESH FIXING BOLTS
U-Bolts
Wide U-Bolts
J-Bolts

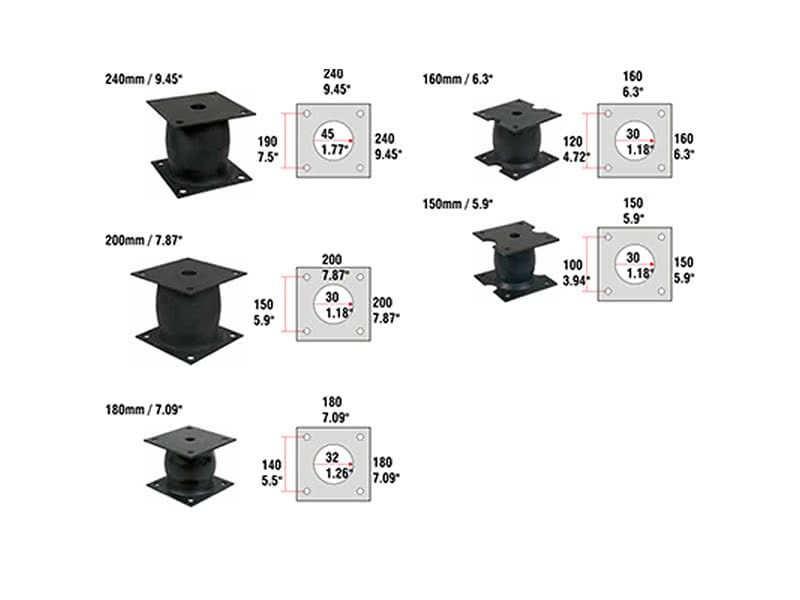

Rubber buffers are an important part of a vibrating screen. Screen operation should be strictly linear in line with the material flow and side movements should be minimised. Especially during start/stop operations, side movements increase as the screen passes through amplitudes close to its natural frequency and it resonates. Side rubber buffers prevent the screen from moving sideways.
Cappings act as a bumper between the deck and screen panel. It is very important to fix the screen mesh tight on the deck as a lose connection will destroy the mesh in a short period of time.
RUBBER EXTRUSION CAPPINGS
Straight capping
Thick capping
Rounded capping
T-capping
POLYURETHANE CAPPINGS
Straight
Rounded
T-Capping
Special Cappings
While a large number of engineers try to minimise the vibrations in different applications, vibrating screen manufacturers try to make the best of it. Proper vibrating patterns are not possible without flexible mounts. Springs are the most common type of vibrating screen suspension. They are durable and easy to install and service.
Washing is one of the most important stages in aggregate and mineral processing applications. Generally, washing is performed by spraying water under pressure on the top of the material flow. Washing nozzles are special attachments to the pipes that spread the water over a wide coverage area. This water washes off the clay and dirt.
We offer 3 different types of washing nozzles in different dimensions:
Declogging rods have been developed to further improve the self-cleaning properties of anti-clogging screens. Declogging rods bounce on the PU strips and create additional shock that helps to shake off stubborn sticky material from the panels. Declogging rods can be connected in multiple parts to completely cover the screen area.
