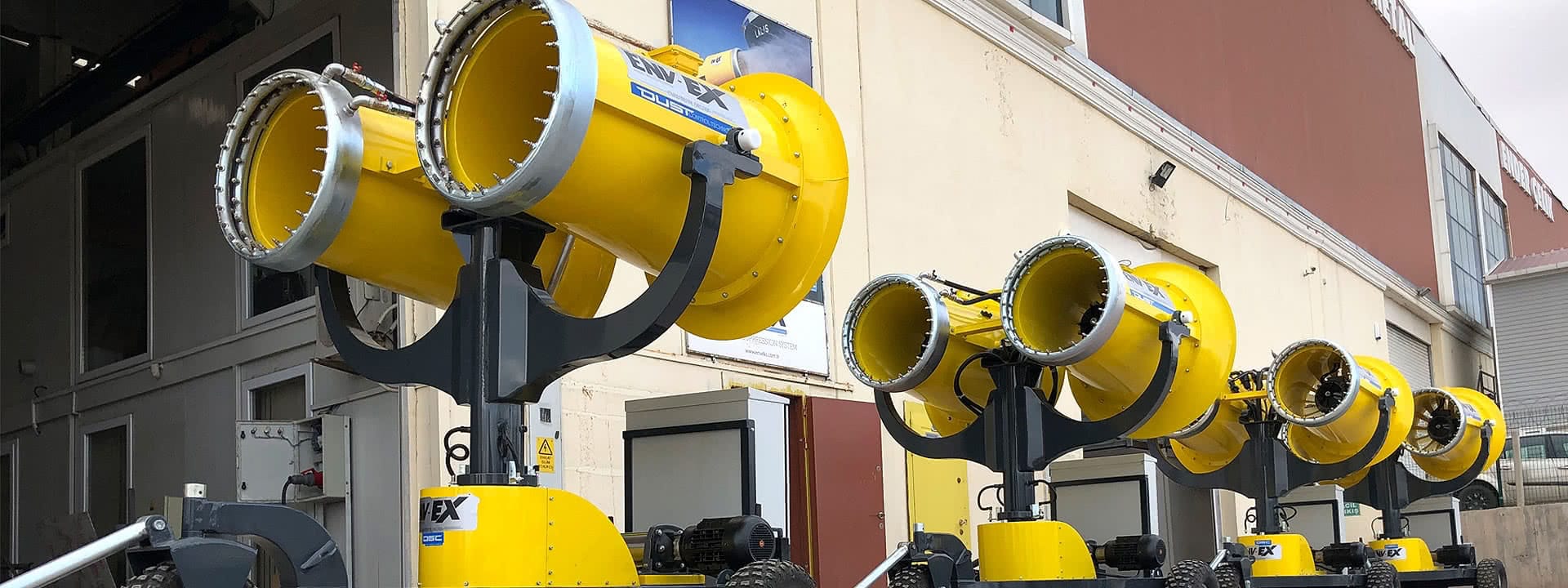

MIST CANNONS

The only dual system on the market

MIST CANNONS

LARGE SCALE DUST SUPPRESSION

Tailor made to your specific requirements.

LARGE SCALE DUST SUPPRESSION

DUST SUPPRESSION

For large-scale industrial applications

DUST SUPPRESSION

MIST CANNONS

MIST CANNONS

MIST CANNONS

For a variety of dust suppression applications

MIST CANNONS
Mist Cannons for Dust Suppression and Odour Neutralisation

GET RID OF THE DUST

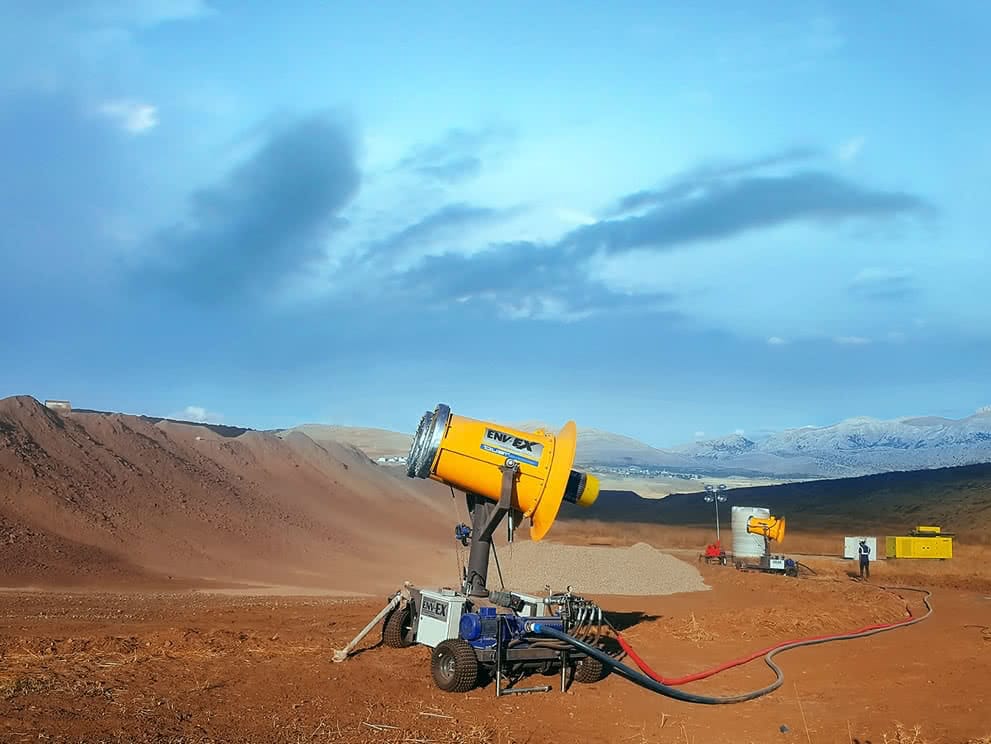

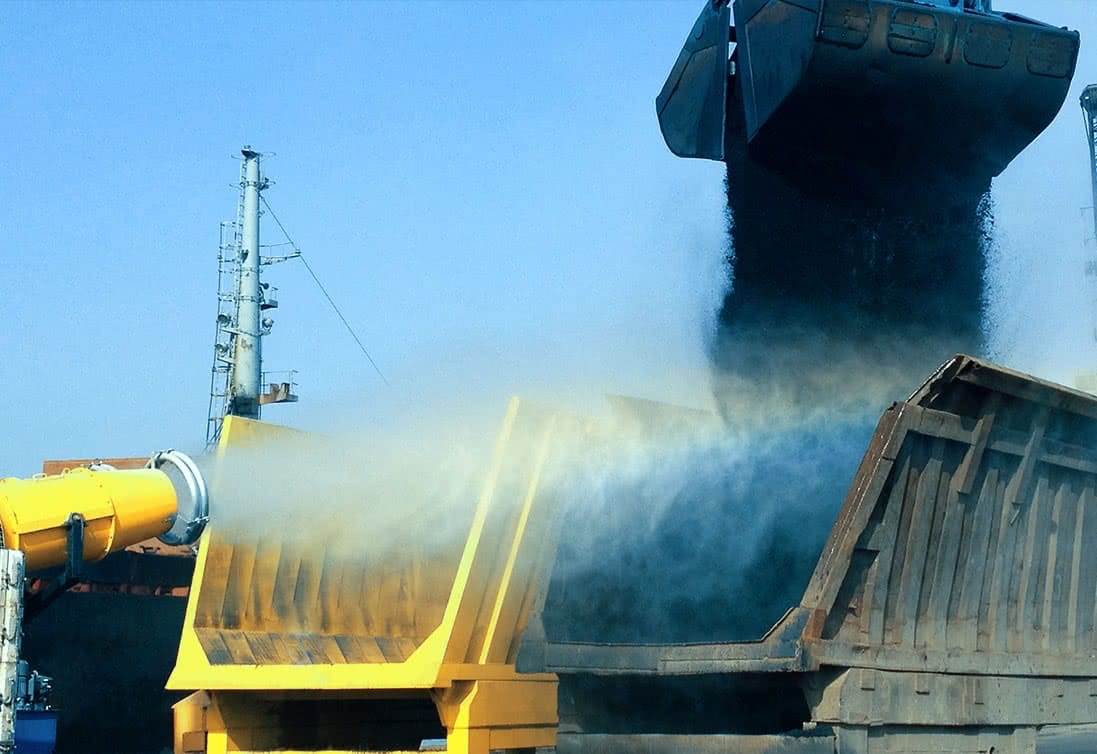

Mist Cannons (also known as Fog Cannons) are unique products that effectively suppress dust at a variety of work sites. Covering a distance of up to 100 metres with the help of powerful fans, ENV-EX Mist Cannons help improve visibility, minimise dust spread to neighbouring areas, reduce environmental pollution and neutralise odour.

HIGH PERFORMANCE ATOMISING

For effective dust suppression, atomised water droplets should be of a comparable size to the dust particles. Only then can the water droplets and dust mix and then drop to the ground. Bigger water droplets tend to push away dust particles due to the slipstream effect, but can travel further. ENV-EX mist cannons use special full cone nozzles that atomise water down to 5µ - 50µ to achieve optimum balance and provide unmatched dust suppression.

LOW WATER CONSUMPTION
ENV-EX mist cannons have a unique pump system with integrated variable speed design to adjust the consumption rate according to operational requirements. Hence the mist cannons save water, or any other liquid, that is used with the cannon.

TYPES AND CHARACTERISTICS OF MIST CANNONS / FOG CANNONS
All ENV-EX mist cannons are highly customisable products. We can manufacture any specific model to your requirements and needs with a variety of horizontal rotation and vertical tilt angles, pump flow rates, silencers, winter kits, remote control or dosing pumps. We can adapt any of these specifications to your specific needs! Any model from the table below from DSC-55 to DSC-220D is customisable.



Contact us to discuss your requirements and to describe the working site. We can then suggest the best model to match your needs.

OUR MIST CANNON ADVANTAGES
EASY TO USE

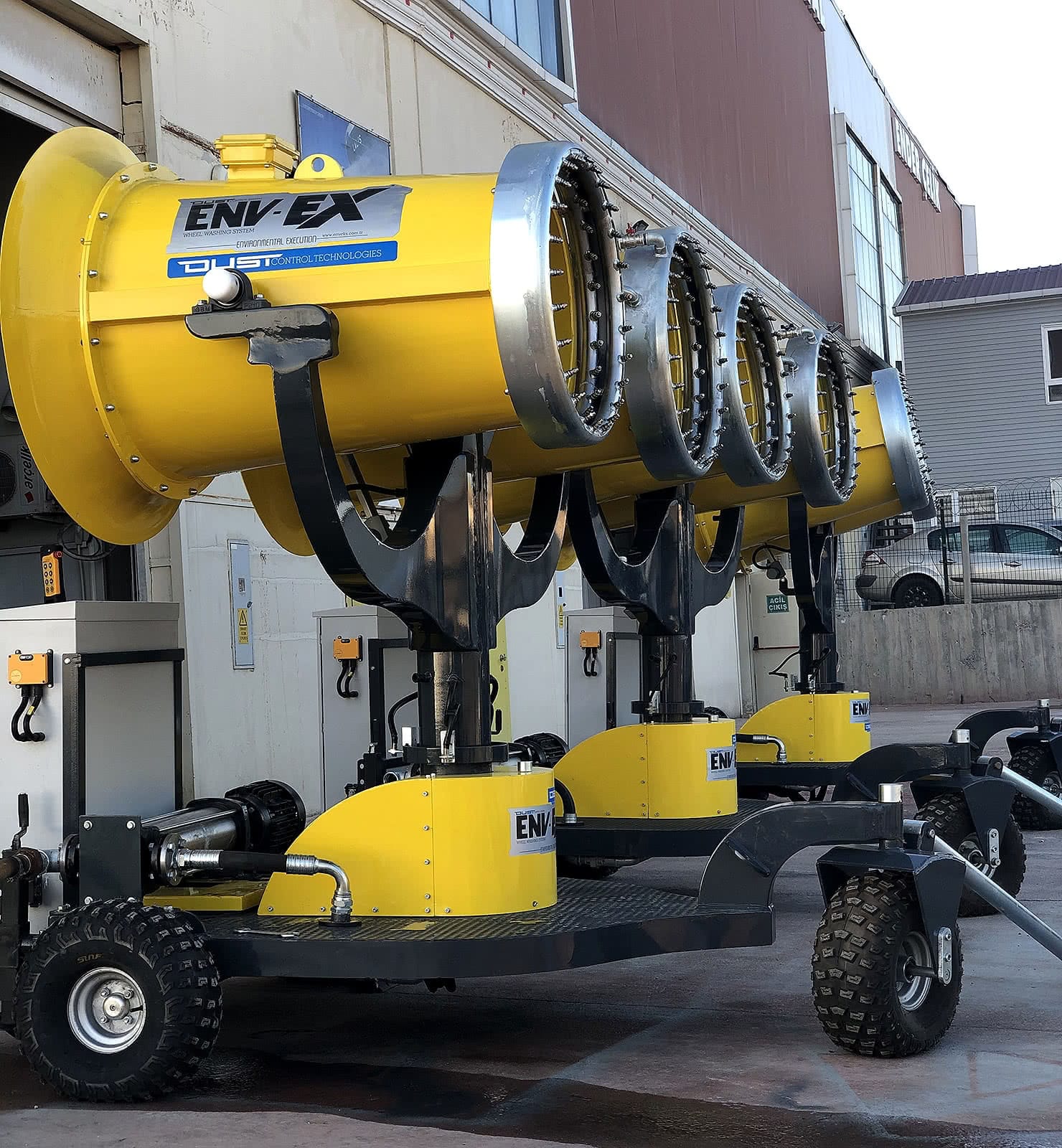

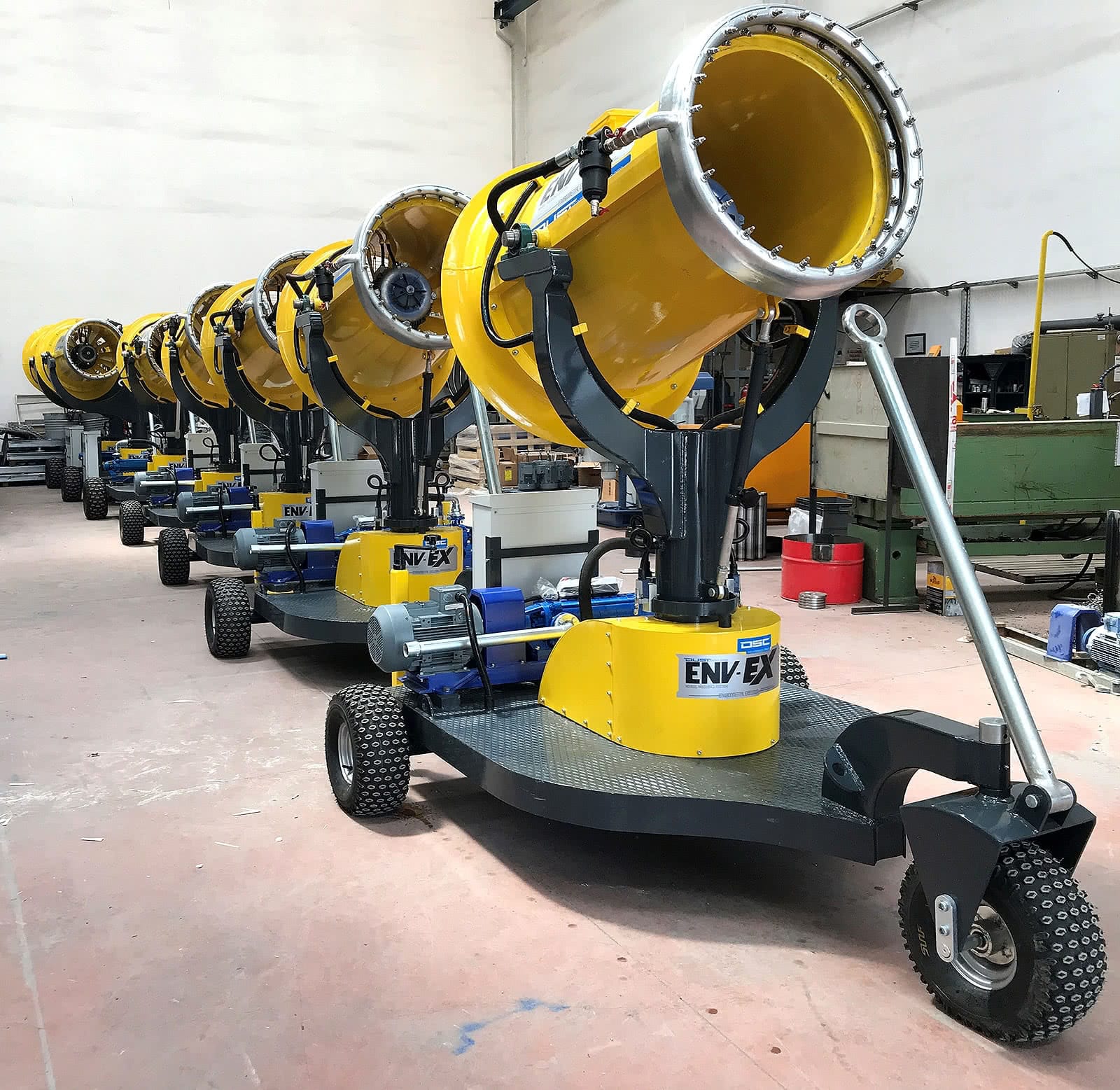

You can easily move your Mist Cannon between working sites, and you can relocate it on site using its specially designed wheelbase. Mist Cannons can be operated by a radio frequency remote control, which allows you to run the working process with only a few buttons from a distance of up to 300 metres away. Automatic oscillation can be adjusted between 0° and 360° and automatic tilting from -30° to +30°.

OUR MIST CANNON ADVANTAGES
SAFE TO RUN

Our Mist Cannons are equipped with a dry run protection option to prevent pump breakdown. The electronic control board is equipped with a magnetic thermal circuit breaker to protect the motors. Each cannon has two emergency buttons; one on the control board, the other on the RF remote control system.

OUR MIST CANNON ADVANTAGES
RELIABLE COMPONENTS

ENV-EX Mist Cannons have been designed for reliability and long 24/7 operation. For this we pay great attention to the main components.

Horizontal Stainless Steel Pump: Our Mist Cannons use horizontal multi-stage stainless steel pumps which are the most durable pumps on the market. This type of pumps requires servicing only once in 2 years! Forget about the frequent oil and gasket changes for ceramic vertical piston pumps which are rather common on the market.

MOBILE MIST CANNONS
NEED TO GO MOBILE?

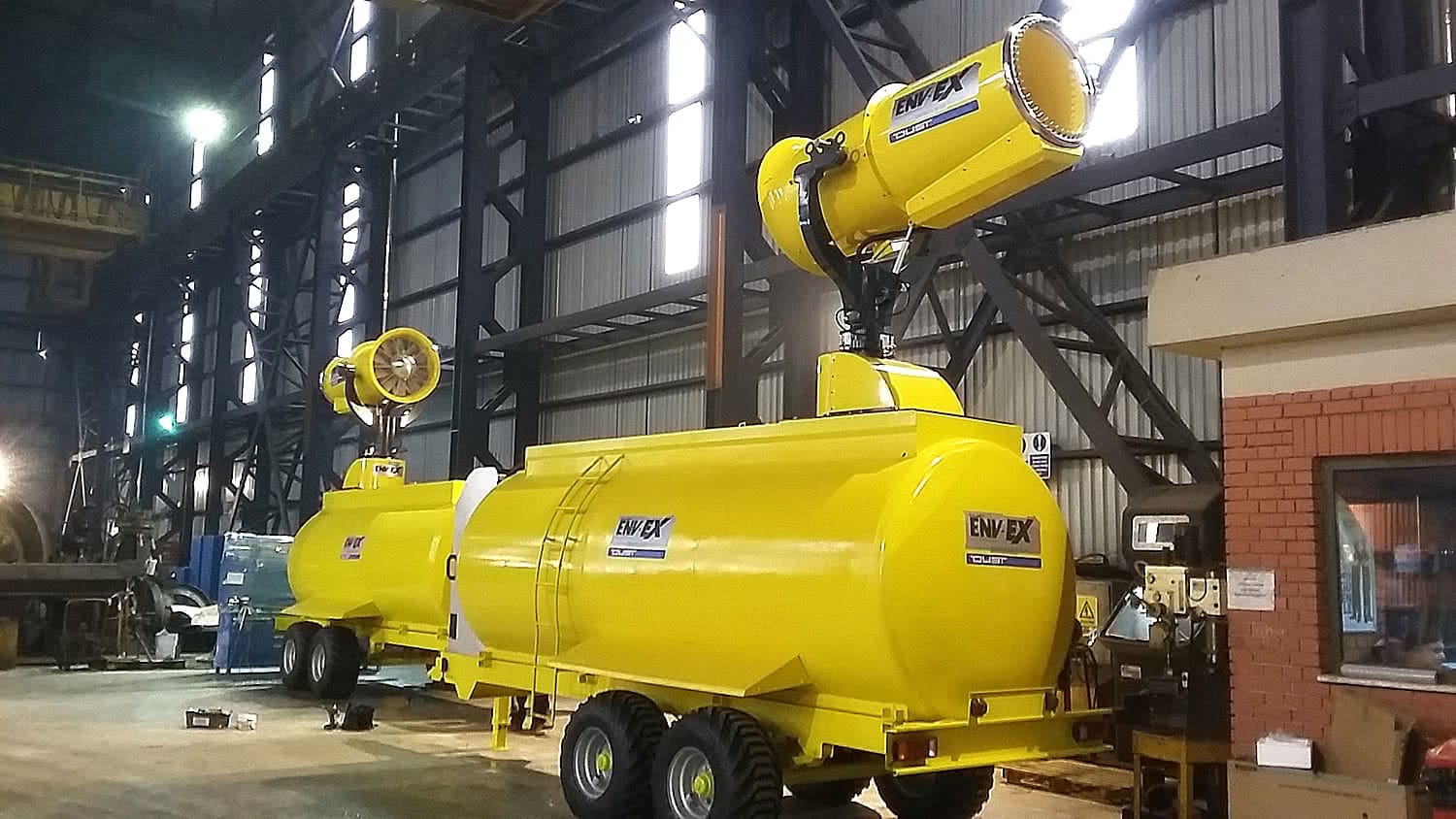

If you need a standalone package on wheels with its own water tank and a genset, WE CAN DO IT! The complete model range from DSC-55 to DSC-220D can be mounted on a trailer with a dedicated water tank and a generator to run completely autonomously. With ENV-EX everything is possible.

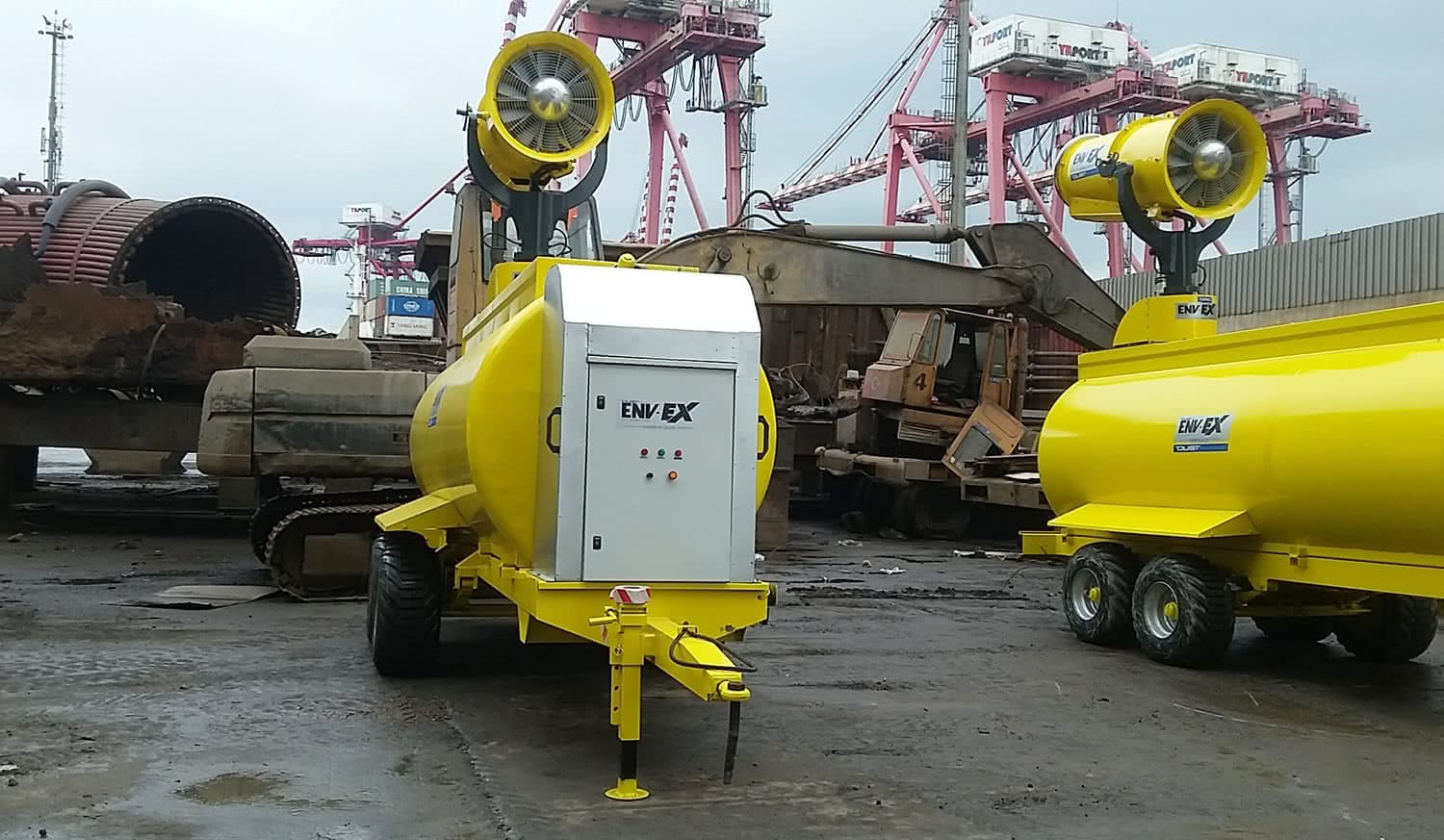

Mobile Fog Cannons are a perfect solution for sites with no access to water and electricity. Trailer mounted mist cannons on wheels are a unique product to use. If your worksite does not have access to water and electricity, but you need a robust model with a large water tank for continuous operation, ENV-EX trailer mounted mist cannons will meet your expectations. Find out more on our MOBILE MIST CANNON page.

FEATURES & BENEFITS
Features

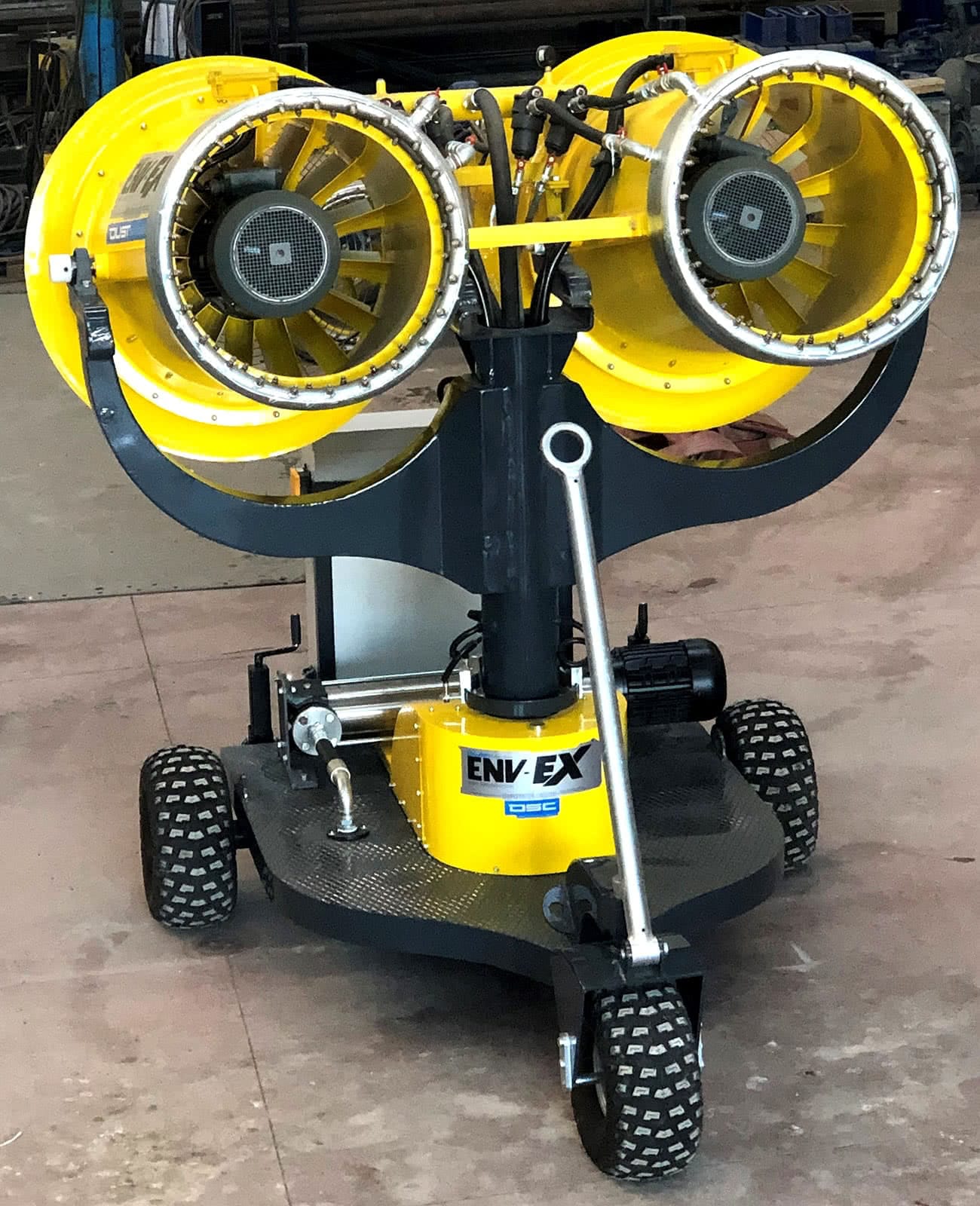

  • Unique dual fan system
  • Horizontal stainless steel water pumps
  • High power turbine fans
  • Higher pressure water pumps on bigger mist cannons
  • Throw distance up to 100 m
  • Droplet size between 5 and 50 microns
  • Up to 100 nozzles per mist cannon
  • Coverage up to 20,000 m²
  • Strong chassis and body
  • Radio remote control available (up to 300m)
Benefits
  • Prevents and reduces dust explosion and fire risks
  • Prevents potential accidents by improving vision
  • Reduces cleaning, maintenance, and operating costs
  • A clean and safe site increases motivation and productivity of employees
  • Provides continuous compliance with health and safety regulations
  • Protects the health of employees
  • Wide range of applications
  • Low cost maintenance and servicing
  • Reliable and cost-effective on the market
APPLICATIONS
Why Use Mist Cannons?
  • Dust suppression at work sites
  • Create favourable working conditions for employees
  • Meet Health and Safety conditions for employees
  • Environmental protection
What are the main application areas for mist cannons?

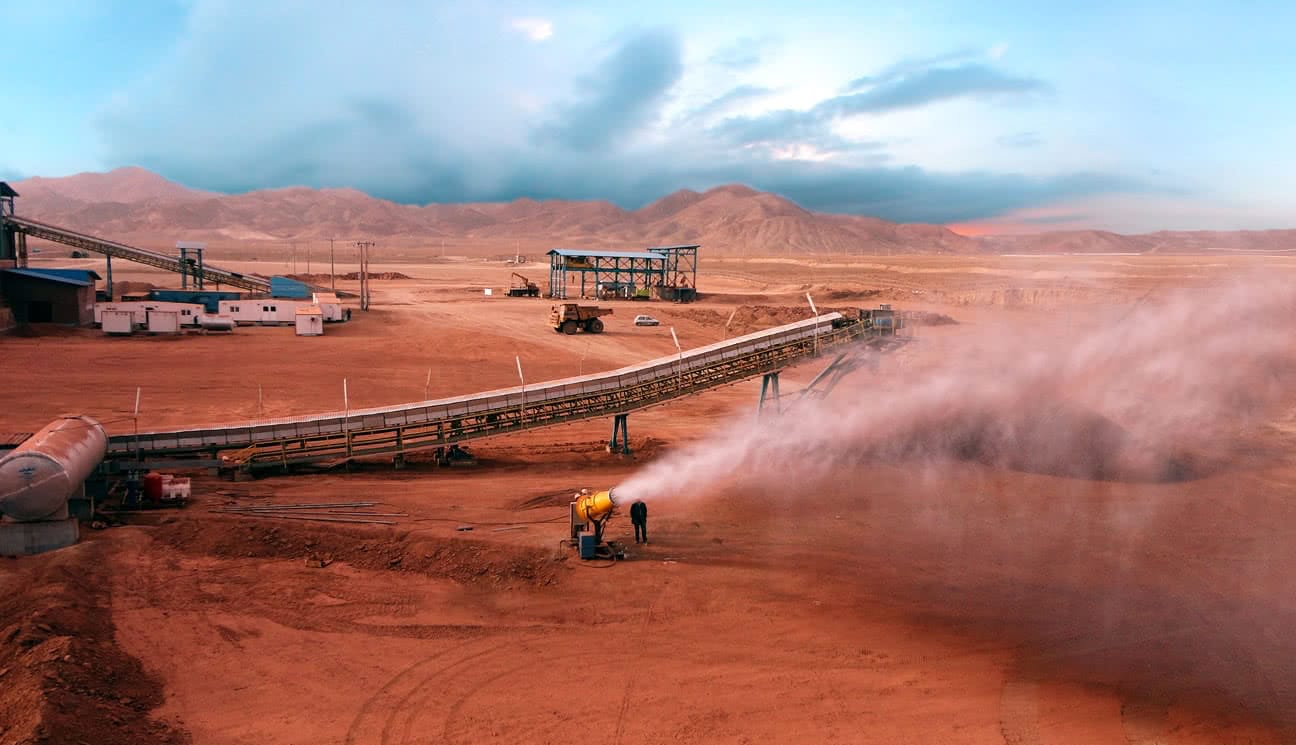

  • Mining and quarrying sector
  • Crushing and screening plants
  • Cement plants
  • Thermal power plants
  • Iron steel plants
  • Construction sector and demolition
  • Excavation and urban transformation
  • Solid waste facilities
  • Municipalities
  • Dams

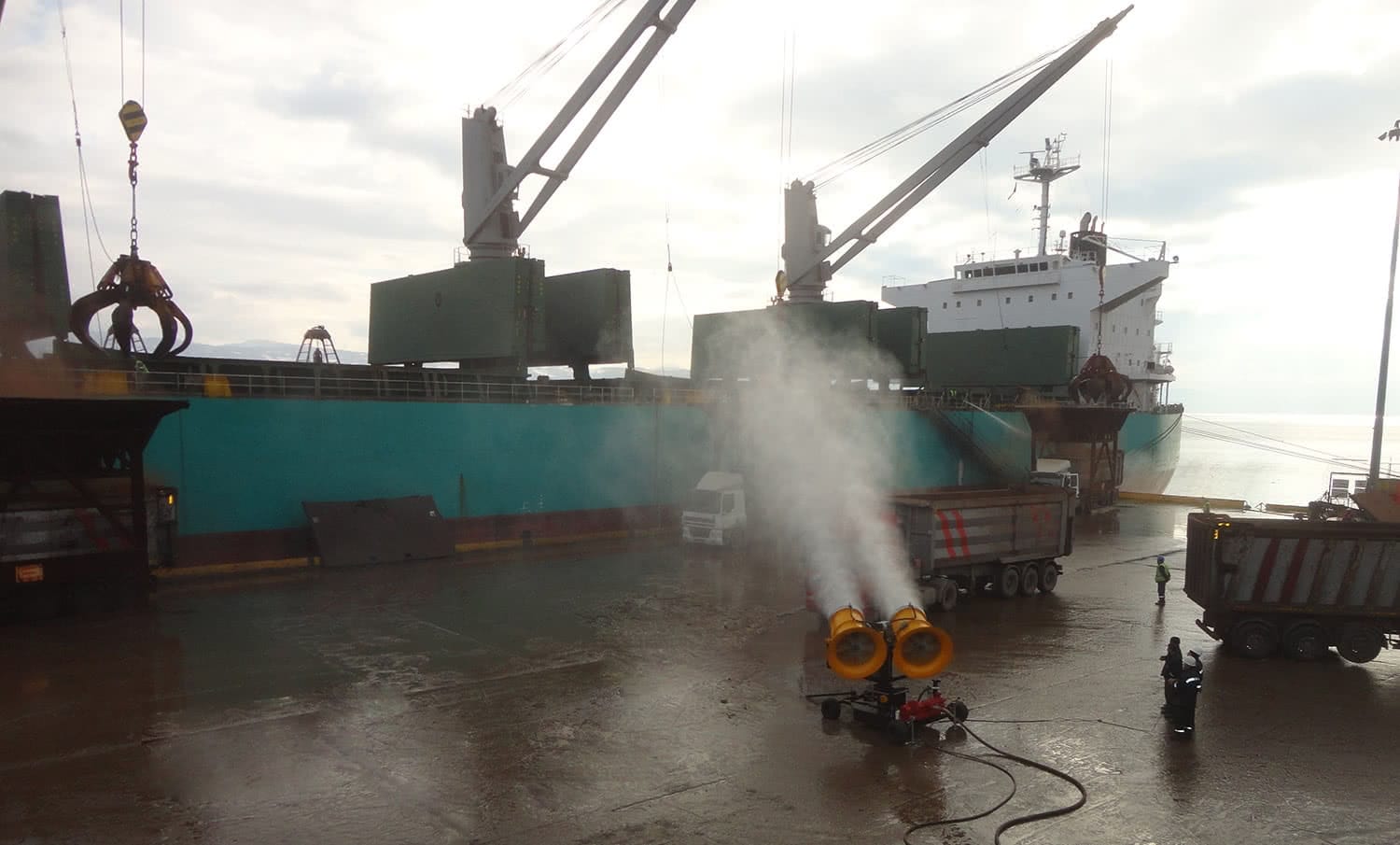

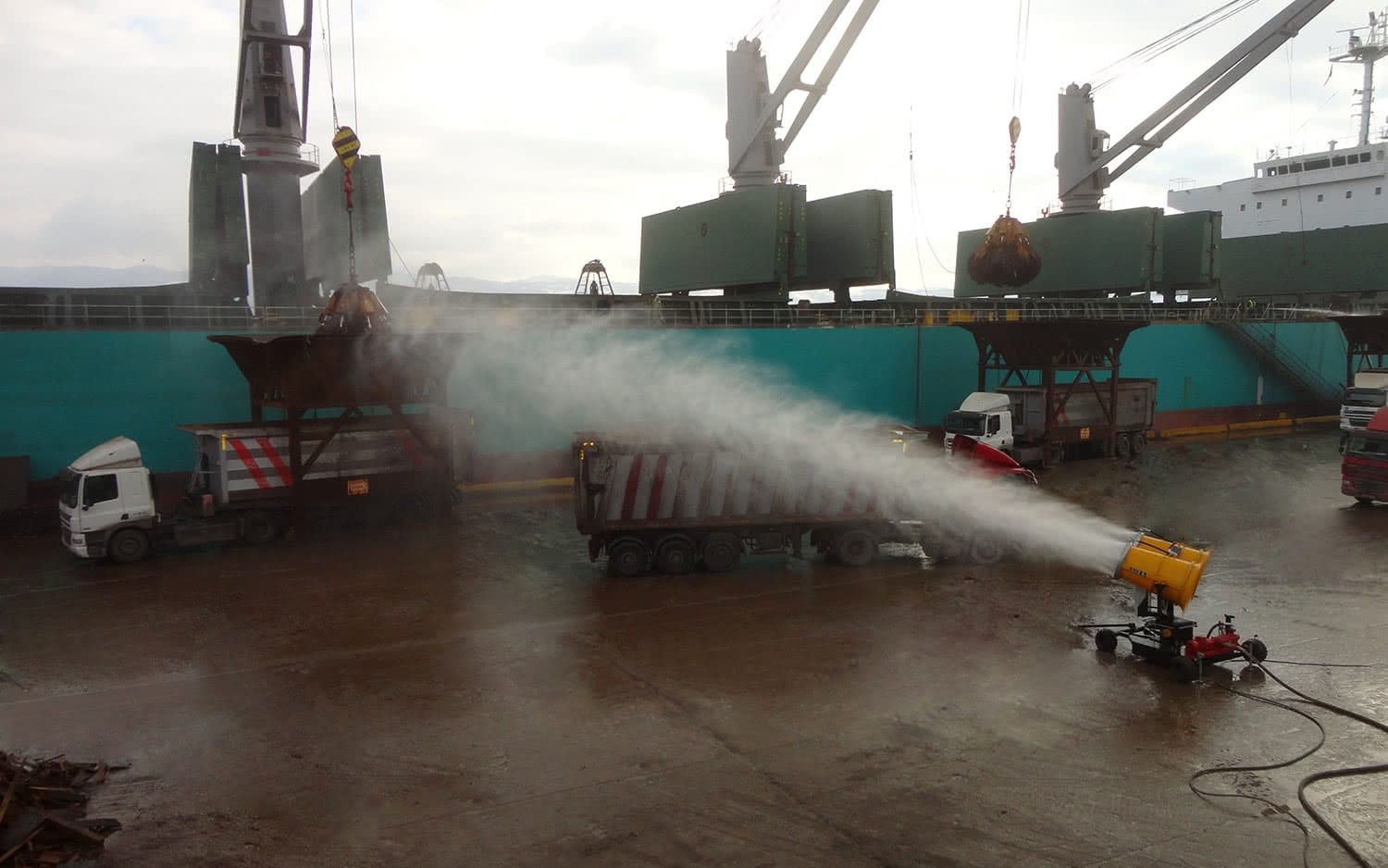

  • Tunnels and ports
  • Asbestos removal
ENV-EX MIST CANNON SPECIFICATIONS

Specification

Units

DSC-55

DSC-75

DSC-110

DSC-185 DSC-185D* DSC-220 DSC-220D* DSC-300 DSC-370 DSC-550

Maximum Throw

Metres

30-35

35-40

40-50

45-55

45-55

50-60

50-60

60-70

70-80

80-100

Total Power

kW

7.7

9.7

14

22.5

42.5

27.5

51.5

37.5

44.5

70

Fan Power

kW

5.5

7.5

11

18.5

18.5 x 2

22

22 x 2

30

37

55

Pump Power

kW

2.2

2.2

3

4

5.5

5.5

7.5

7.5

7.5

15

Electrical Power

Phase / Freq / Volt

3N / ~50 / 400

3N / ~50 / 400

3N / ~50 / 400

3N / ~50 / 400

3N / ~50 / 400

3N / ~50 / 400

3N / ~50 / 400

3N / ~50 / 400

3N / ~50 / 400

3N / ~50 / 400

Suggested Generator Size

kVA

20

25

35

60

110

70

130

90

110

175

Nozzle

Quantity

35

40

50

50

100

50

100

60

75

110

Water Consumption, Stage 1

litres / minute

18-35

20-40

25-50

25-50

50-100

25-50

50-100

50-100

50-100

50-100

Water Consumption, Stage 2

litres / minute

35-70

40-80

50-100

50-100

100-200

50-100

100-200

100-200

100-200

100-200

Droplet Size

Microns

5-50

5-50

5-50

5-50

5-50

5-50

5-50

5-50

5-50

5-50

Water Supply Connection

Inch

DN 25

DN 25

DN 40

DN 40

DN 40

DN 40

DN 65

DN40

DN40

DN 40

Water Supply Pressure

bar

2-3

2-3

2-3

2-3

2-3

2-3

2-3

2-3

2-3

2-3

Working Pressure

bar

10-15

10-15

10-15

15

15

15

15

15

15

15

Silencer

80 dB

Optional

Optional

Optional

Optional

Optional

Optional

Optional

Optional

Optional

Optional

Winter Kit

Auto drain valve & air release valve

Optional

Optional

Optional

Optional

Optional

Optional

Optional

Optional

Optional

Optional

Remote Control

Radio Frequency (up to 300 m)

Optional

Optional

Optional

Optional

Optional

Optional

Optional

Optional

Optional

Optional

Dosing Pump

For Chemical Solution Mixing

Optional

Optional

Optional

Optional

Optional

Optional

Optional

Optional

Optional

Optional

Horizontal Oscillation

Option

Optional

Optional

Optional

Optional

Optional

Optional

Optional

Optional

Optional

Optional

Horizontal Rotation

Degrees

0° - 360°

0° - 360°

0° - 360°

0° - 360°

0° - 360°

0° - 360°

0° - 360°

0° - 360°

0° - 360°

0° - 360°

Horizontal Rotation

Angle Adjusment

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Auto Vertical Oscillation

Option

Optional

Optional

Optional

Optional

Optional

Optional

Optional

Optional

Optional

Optional

Vertical Tilt

Degrees

Custom**

Custom**

Custom**

Custom**

Custom**

Custom**

Custom**

Custom**

Custom**

Custom**

* Double Axial Fan Systems
* Can be customised according to customer requirement
